Automatic bagging machine

The bagging machine is a fast filling machine such as the on-site granary of the sand factory. The machine adopts a large-capacity hopper, which can hold two cubic meters of sand at a time; the hopper is added on three sides, and the other side is convenient for forklift loading; in order to prevent the material from being unloaded hollowly, a silo wall vibrator is installed on the silo wall to assist in discharging , labor saving and high efficiency. The bagging machine is a fast filling machine, such as the granary sand factory site. It is mainly used for automatic quantitative packaging of sand and gravel.

Automatic bagging machine

Introduction

The bagging machine is a fast filling machine such as the on-site granary of the sand factory. The machine adopts a large-capacity hopper, which can hold two cubic meters of sand at a time; the hopper is added on three sides, and the other side is convenient for forklift loading; in order to prevent the material from being unloaded hollowly, a silo wall vibrator is installed on the silo wall to assist in discharging , labor saving and high efficiency.
The bagging machine is a fast filling machine, such as the granary sand factory site. It is mainly used for automatic quantitative packaging of sand and gravel.

Scope of application

Widely used in yellow sand, machine-made sand, quartz sand, coal, grain and other products.

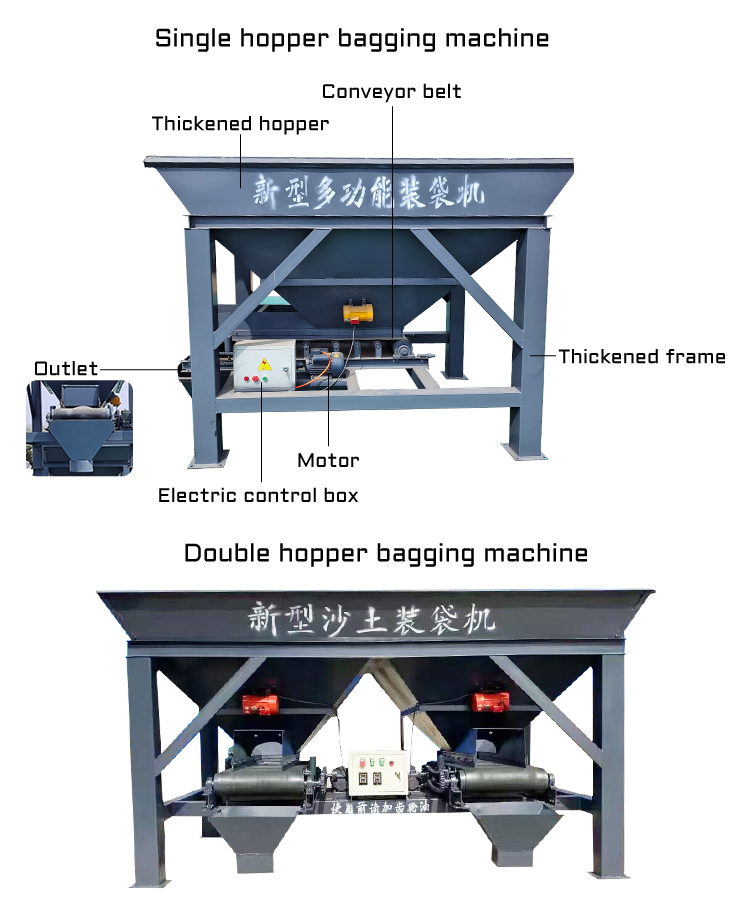

Product Structure Introduction

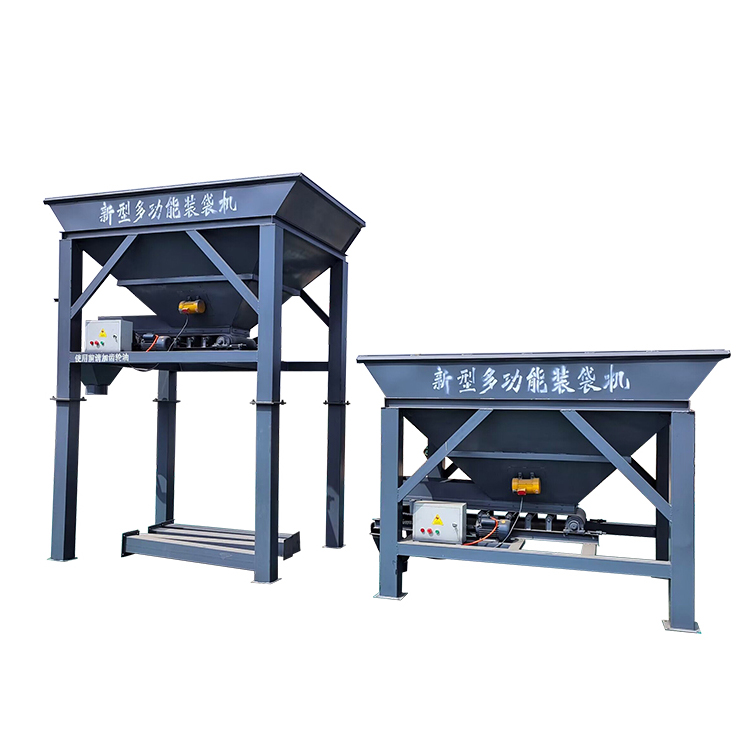

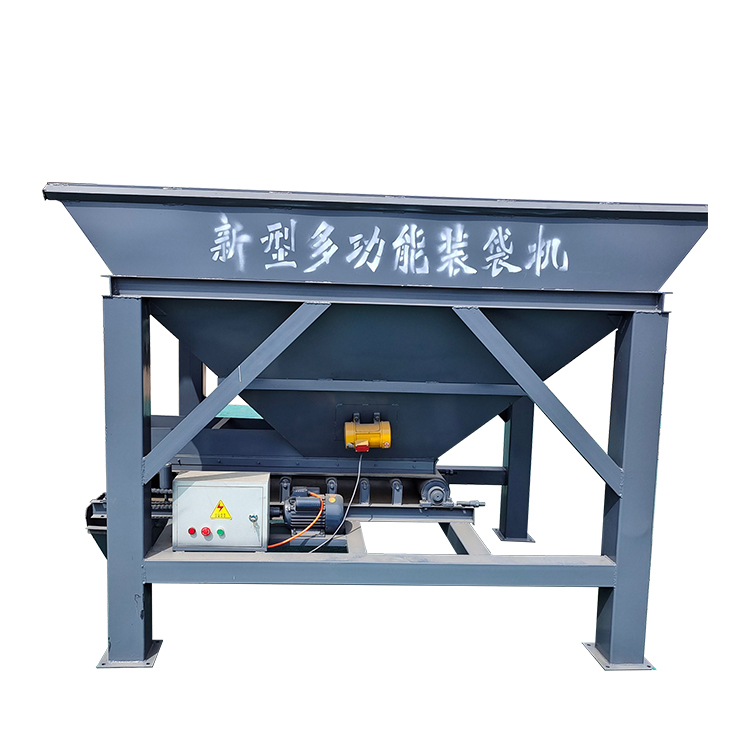

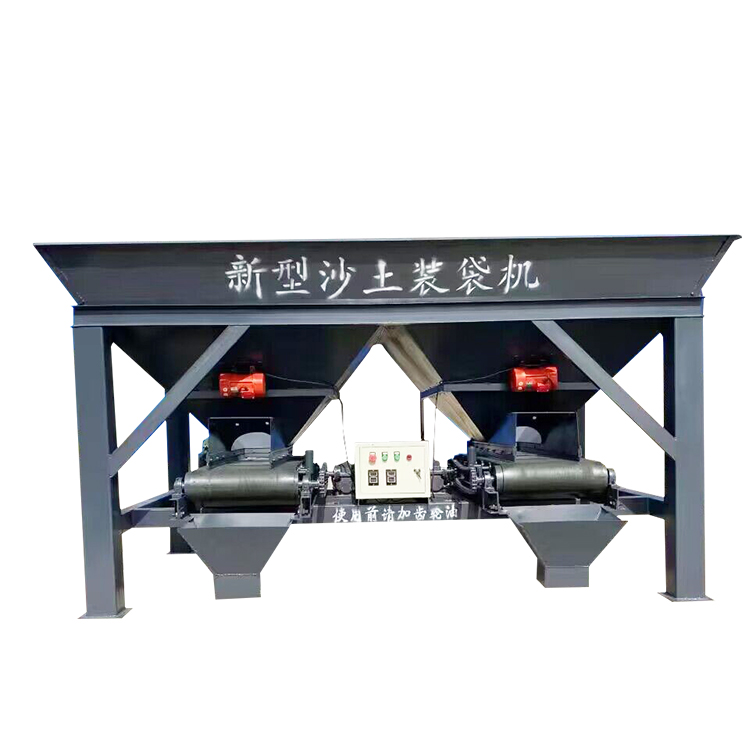

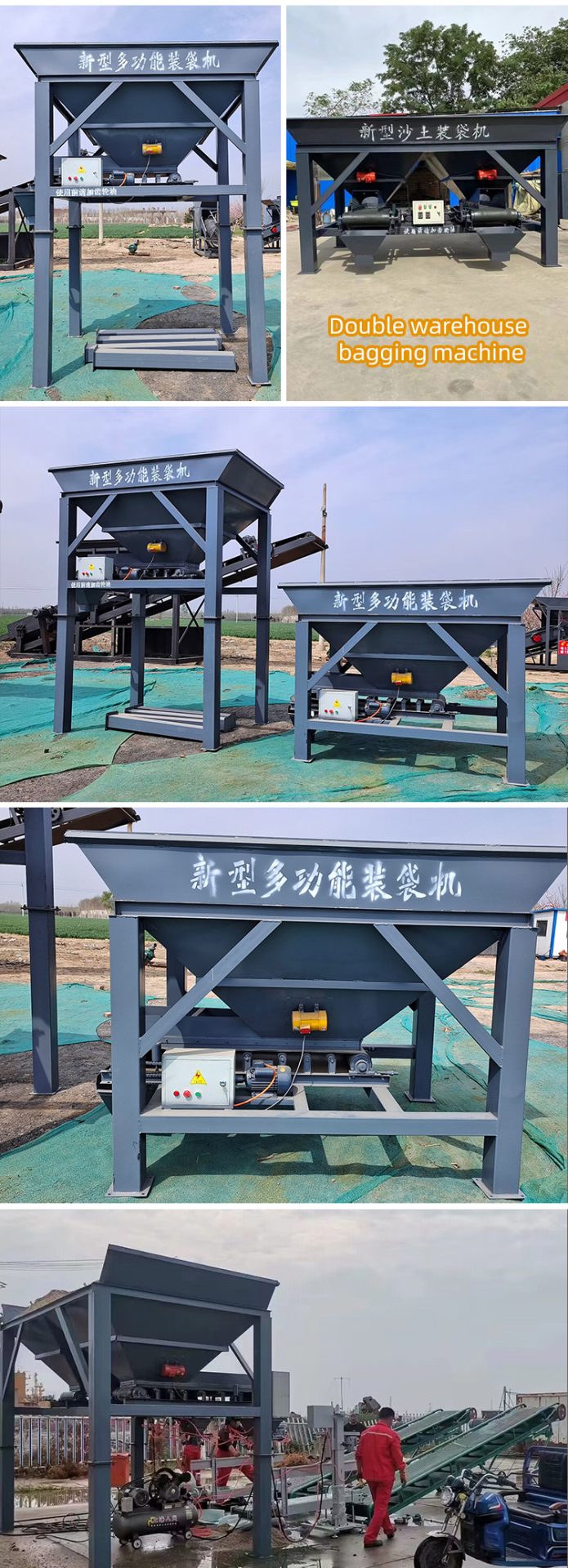

Product display

Product model Single hopper bagging machine Double hopper bagging machine
Bagging speed 1-2s/ bag 1-2s/bag
Hopper capacity 2.5m³ 2.5m³*2
Hopper size 2.2*1.6*1.05m 2.3*1.5*1.05m
Overall size 2.95*1.7*2.4m 3.3*2.95*2.4m
Equipped with motor pure copper motor pure copper motor
Total Weight 750kg 1200kg
Motor Power Two-phase 2.5KW/Three-phase 3KW Two-phase 2.5KW/Three-phase 3KW
Vibration motor 550w 550w
