Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Introduction
This small size PE series jaw crusher max. feeding size is 130-210mm, output size is 10-60mm, capacity is 1-20 tph. Mining crusher crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building construction, construction wastes etc.
Working principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

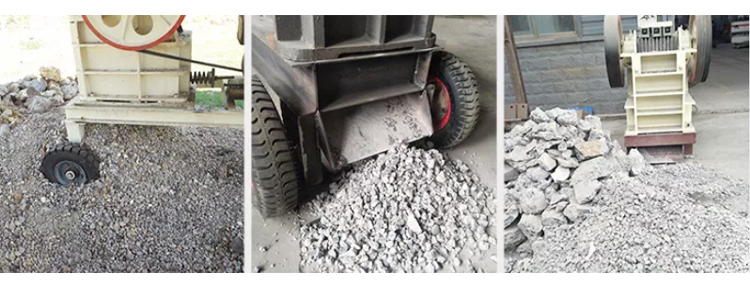

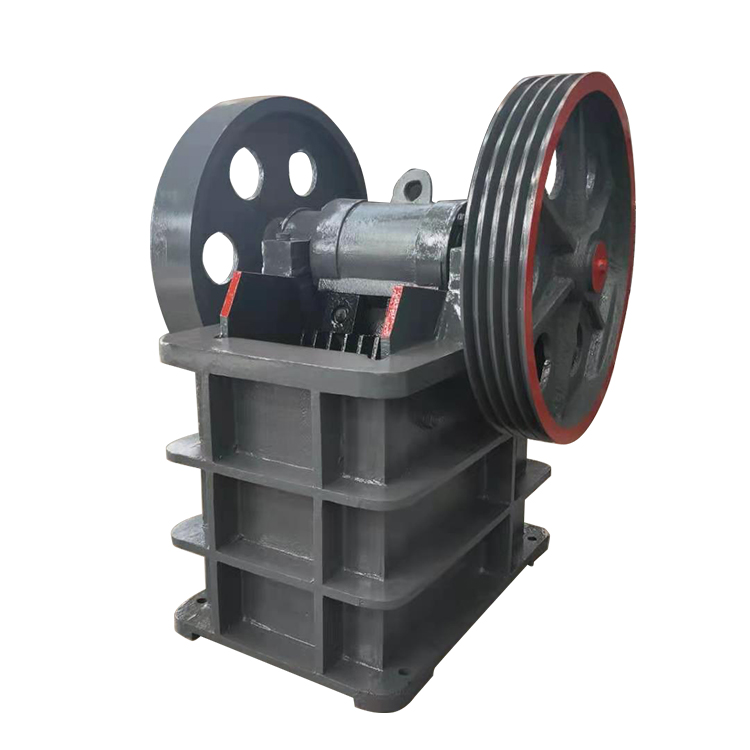

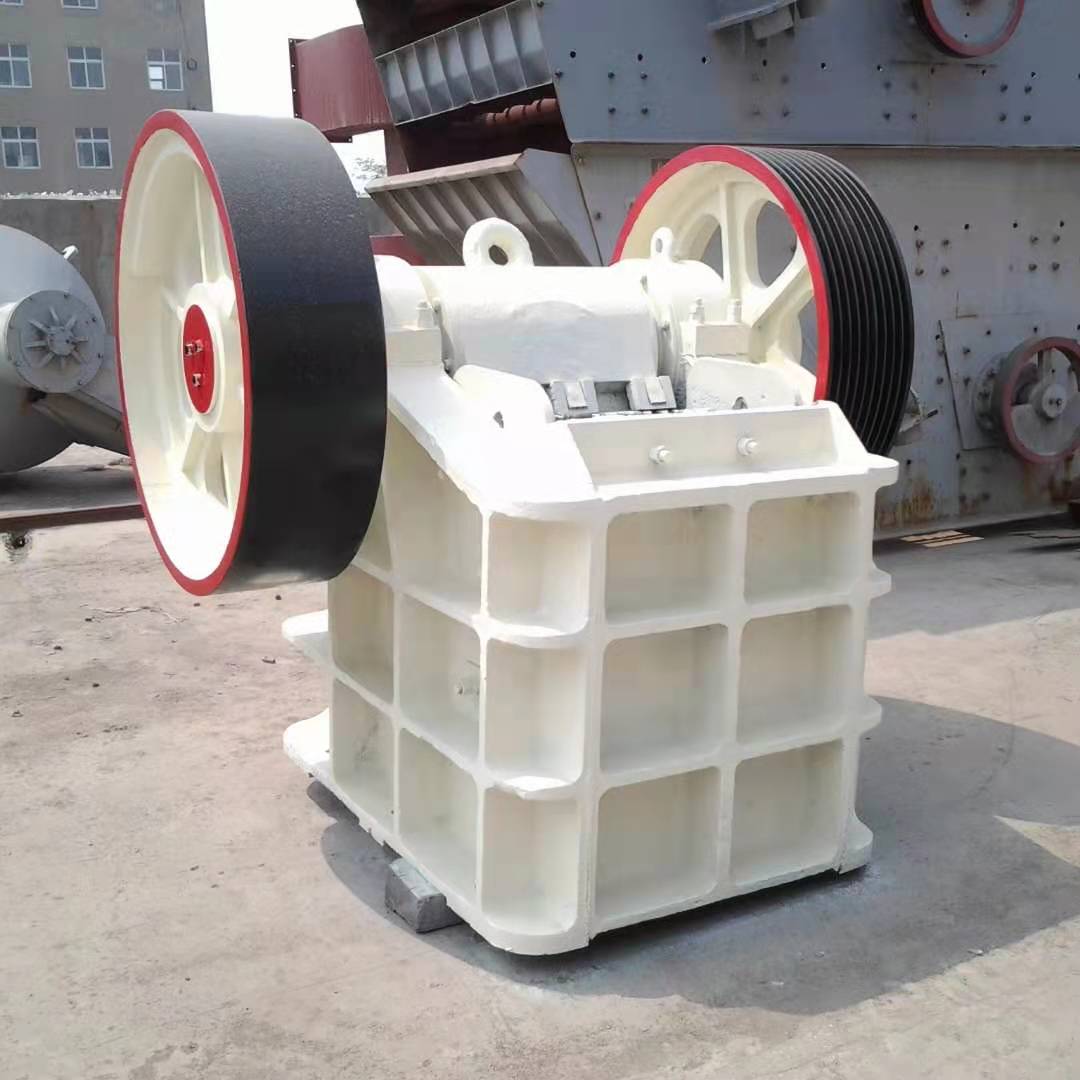

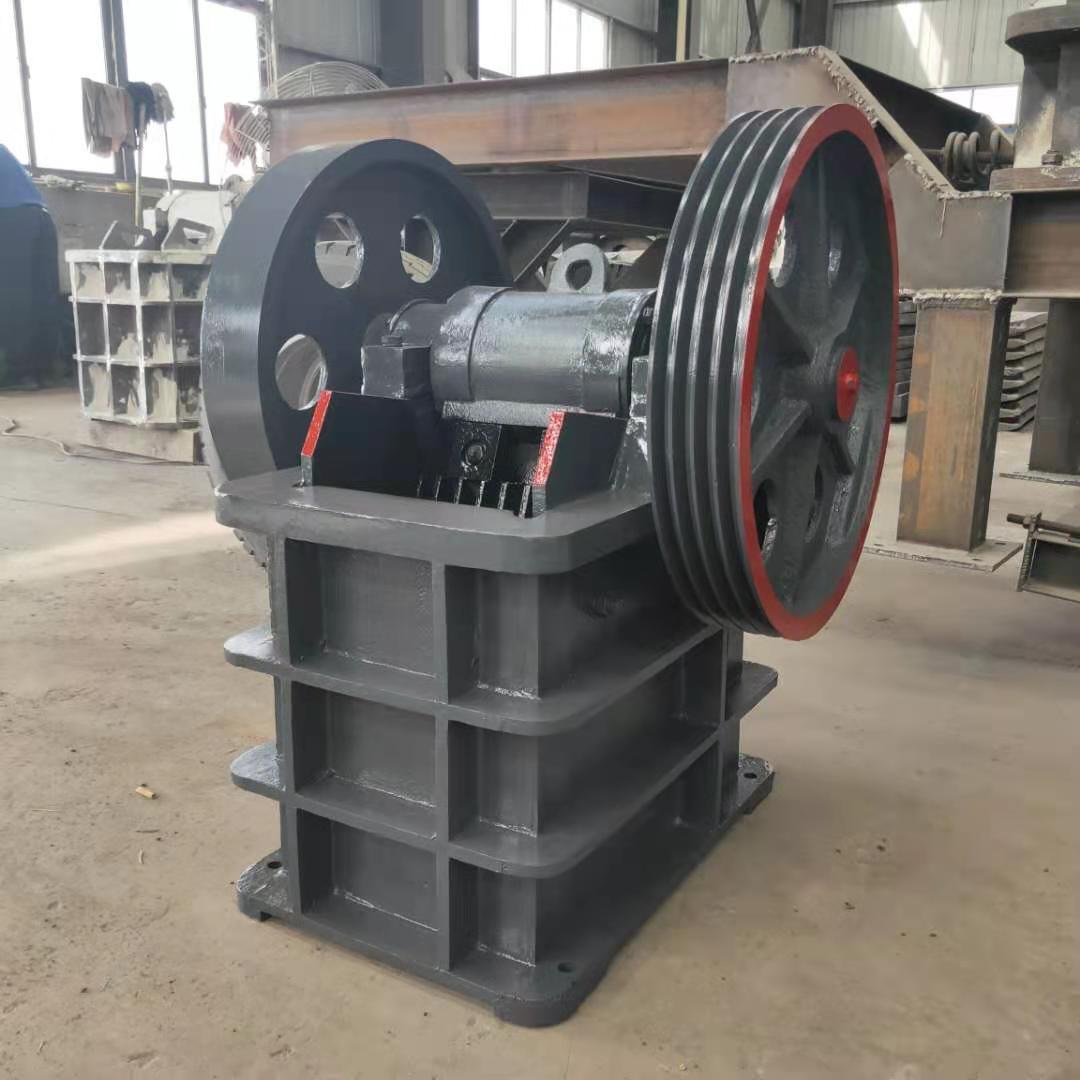

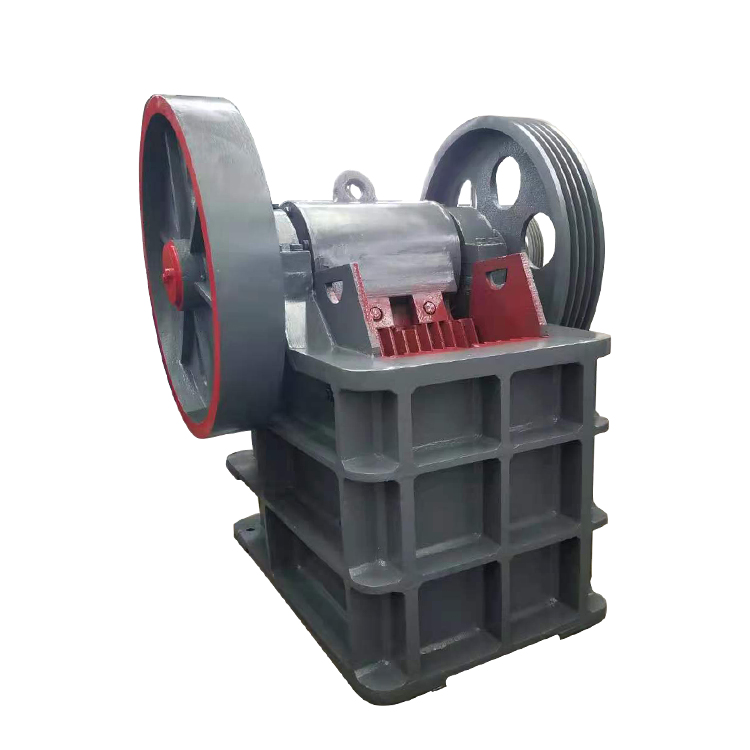

Product display
We can customize some suitable equipment according to the actual situation of customers to save time and money, make it more convenient for customers to use, and thus get better promotion, such as crushing conveying equipment and crushing and screening equipment.
Related Products

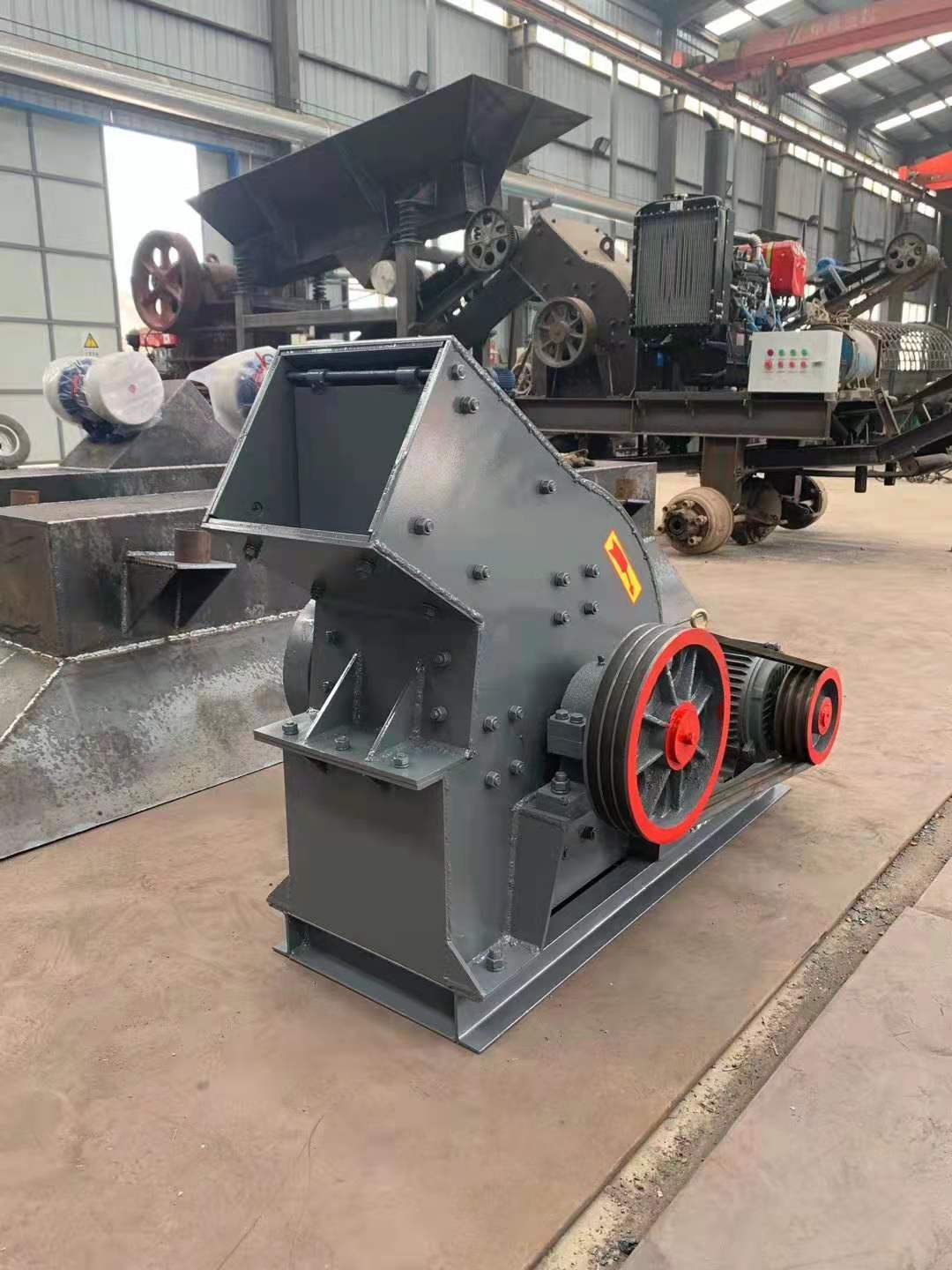

In addition, we also have hammer mills for selection.
Types of hammer mill is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture,such as coal, cement,gypsum,alumen,brick,tile,limestone,etc.It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
PE150x250 | 150x250 | 130 | 10-45 | 1-4 | 5.5 | 896×745×935 |
PE200x300 | 200x300 | 180 | 15-50 | 2-6 | 7.5 | 910×750×990 |
PE200x350 | 200x350 | 180 | 18-70 | 3-10 | 7.5 | 1000×870×990 |
PE250x400 | 250x400 | 210 | 25-60 | 5-20 | 15 | 1215×1240×1210 |
