Mortar spraying machines are widely used in engineering construction, mines, tunnels, culverts, subways, hydropower projects, underground projects and coal swamp mines. Soil transportation and spraying during construction. The machine can be used for wet spraying, dry spraying and single fiber spraying. The machine mixes the cement slurry sent by the mud pump, the sand and gravel sprayed by the spraying machine and the accelerator in the mixer, and the mixed material is sent to the spray gun through the delivery pipe for spraying.
Work video display

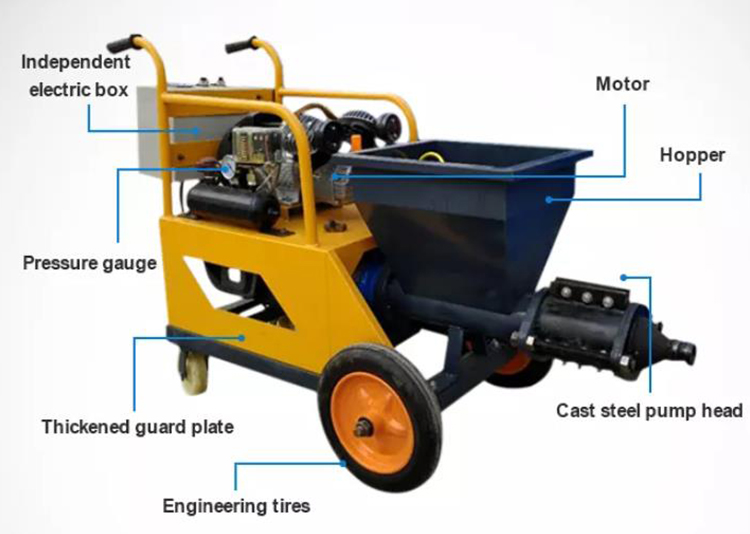

Product analysis

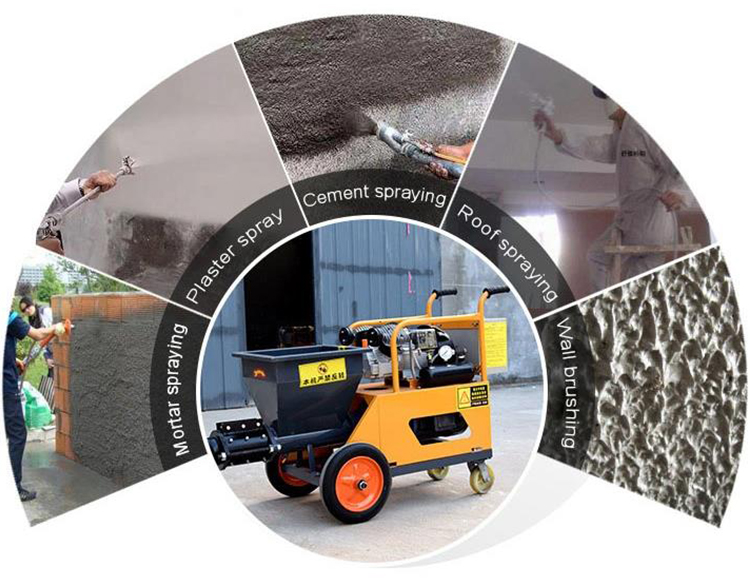

Product applicable
Mortar spraying machine is suitable for: indoor and outdoor ceiling spraying, expansion joint leakage, settlement joint leakage, subway leakage, tunnel leakage, mine plugging, civil air defense plugging project, dam leakage plugging, floor, crack, hollow reinforcement Reinforcement, cement mortar spraying, dry powder mortar spraying, waterproof grouting and waterproof surface spraying, waterproof spraying, grouting, ceiling spraying, wall spraying, paint spraying, garden spraying, relief effect paint spraying, handicraft spraying, latex paint, real stone paint, rockery Spraying, sculpture spraying, sound-absorbing material spraying.

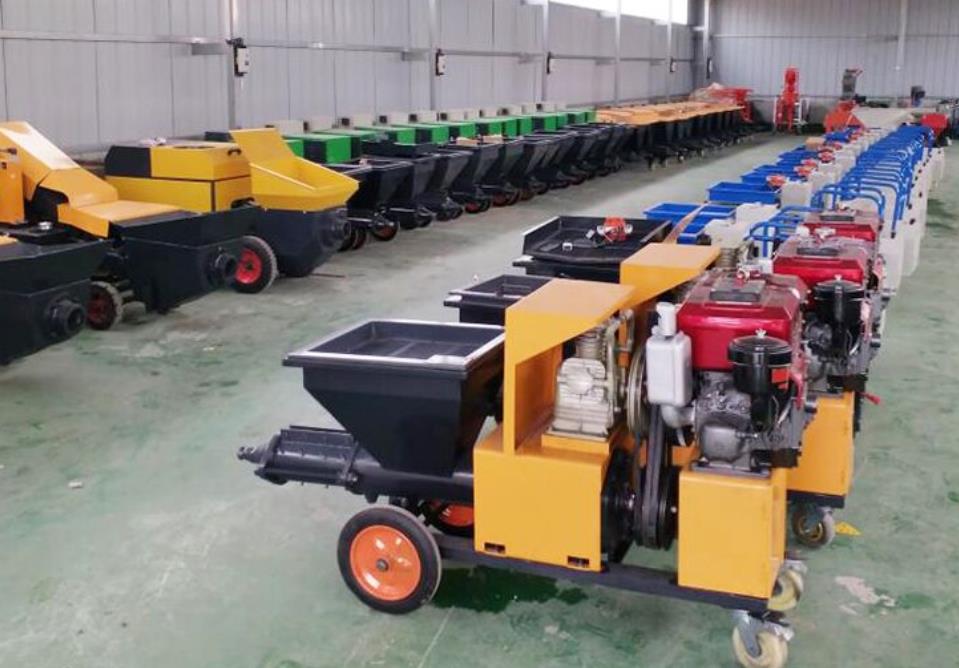

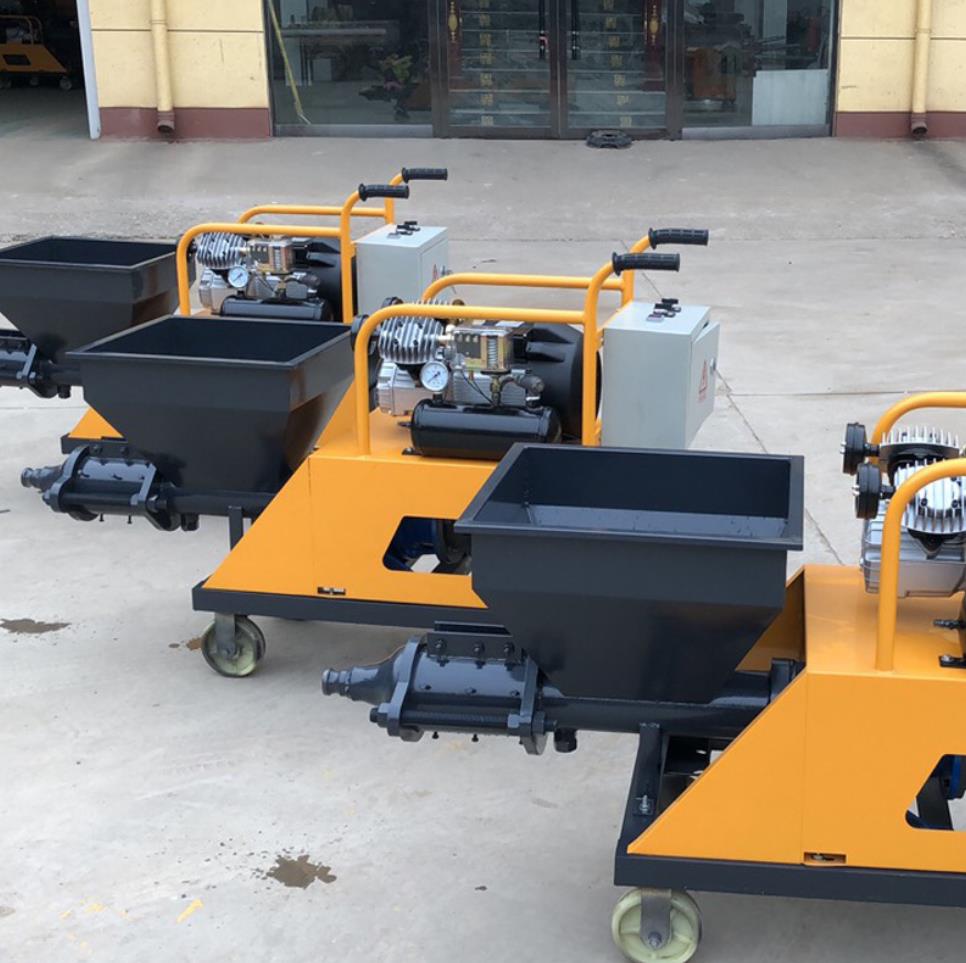

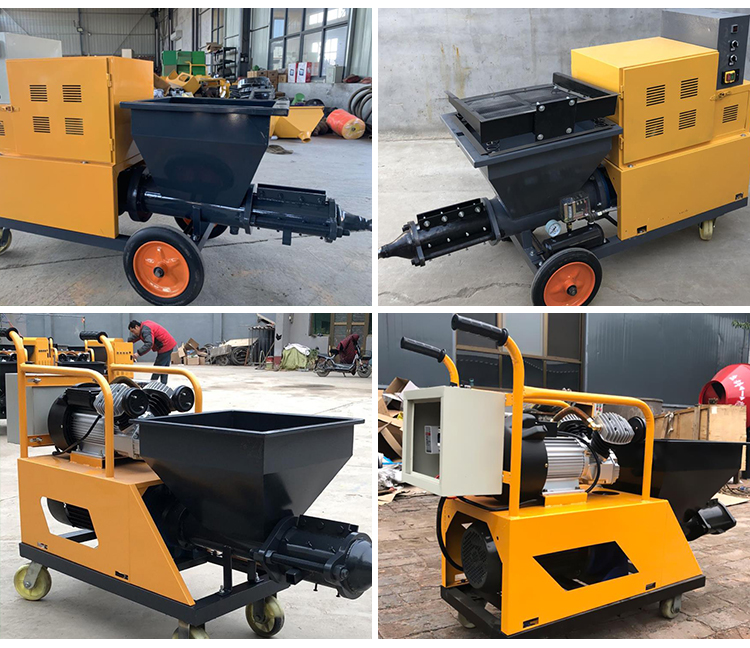

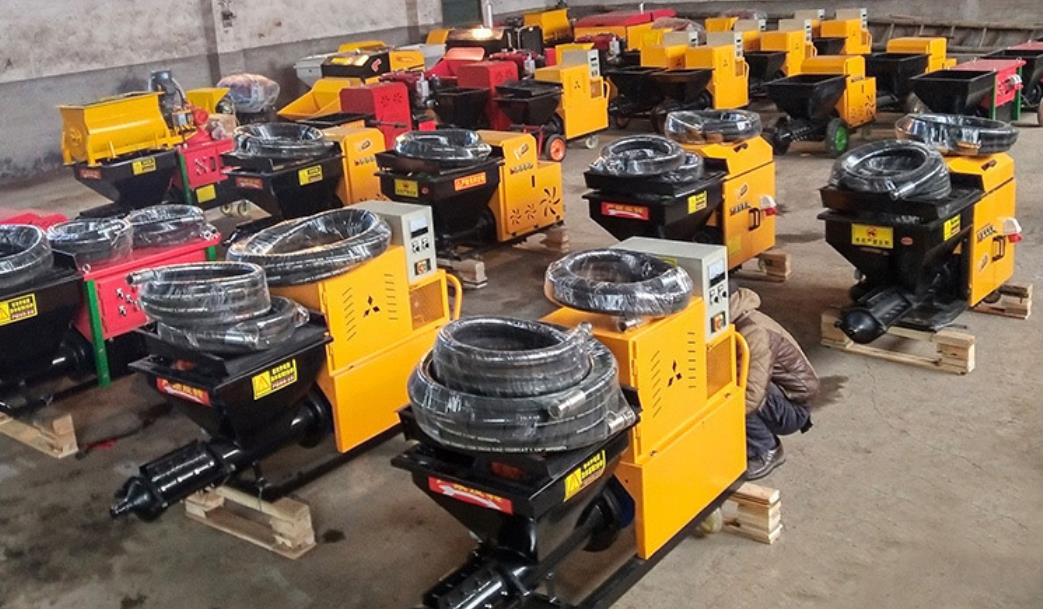

Products real shot
Show more

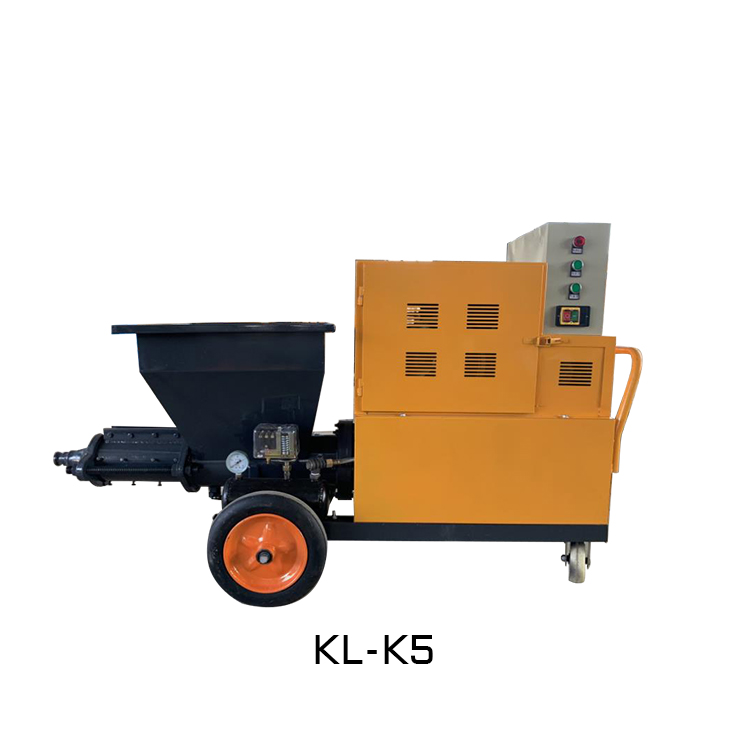

| Model | KL-K3 | KL-K5 |
| Voltage | 220v/380v | 220v/380v |
| Weight | 150KG | 200KG |
| Size | 1480*500*800mm | 1600*650*900mm |
| Power | 4kw | 7.5kw |
| Capacity | 150m2/h | 250m2/h |
| Maximum particle size | 8mm | 8mm |
| Conveying distance | vertical 10m, horizontal 20m | vertical 20m, horizontal 40m |
